Blocks

Blocks

Loops and Timing

Repeating a manoeuvre without repeating yourself — and the wait block that makes every manoeuvre take time.

Two categories that belong together. Timing holds one idea — waiting — and without it a flight program has no duration at all. Loops holds the way to say something four times without dragging it out four times.

Timing: the wait block

wait n seconds — and that is the whole category, in two forms.

BlockWhat it writes
wait 2 secondstime.sleep(2)
wait ⟨value⟩ secondstime.sleep(x) — the number comes from a block dropped in

Waiting sounds like doing nothing, and it is the opposite. Every flight block in the drone’s category sets a state and hands straight on: fly starts travelling, rotate starts turning, throttle starts climbing. The wait is where the flying happens. Remove every wait from a program and the aircraft receives all its instructions in one instant and acts on the last one only.

Numbers between 0.1 and 60 are accepted, to a tenth of a second.

The second form matters more than it looks: its duration is a hole, not a number typed on the block, so anything that produces a number can go in it — a variable, a sum, the loop counter below.

Loops: the five blocks

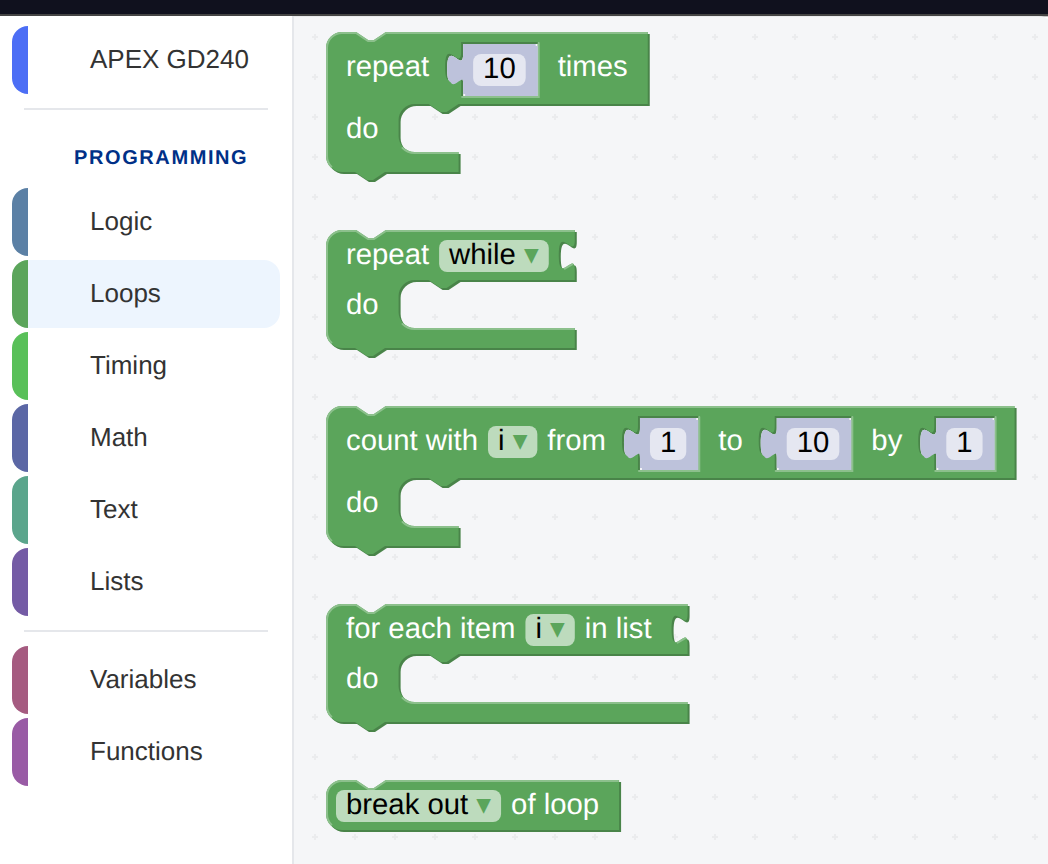

The Loops category open, showing repeat 10 times, repeat while, count with i from 1 to 10 by 1, for each item in list, and break out of loop

The Loops category. The green blocks with a mouth hold other blocks inside them.

BlockWhat it doesWhat it writes
repeat n timesRuns what is inside it, n times.for count in range(4):
repeat while / until ⟨test⟩Keeps going as long as the test holds.while x: / while not x:
count with i from 1 to 10 by 1The same as repeat, except the program can see which pass it is on.for i in range(1, 11):
for each item i in list ⟨list⟩One pass per item in a list.for i in mylist:
break out of / continue with next iterationLeaves the loop early, or skips the rest of this pass.break / continue

Note the shape of the first one: the 10 sits in a socket, in its own little block, rather than being typed on the loop itself. Anything that produces a number can go there instead.

Why a loop

Connected blocks execute from top to bottom. Add land to the bottom of a short program:

The land block snaps onto the program. Its position determines when it runs.

To repeat a movement and a pause, put those commands inside repeat:

A repeat 4 loop containing fly, wait, stop and a short settling pause

The blocks inside the loop run four times. Land stays below the loop.

Generated by Blocks
drone.active_fly()
drone.takeoff()
for count in range(4):
    drone.fly('forward', 1)
    time.sleep(1)
    drone.fly_stop()
    time.sleep(0.5)
drone.land()

This repeats one forward movement four times. It does not draw a square. The current simulator uses world-frame directions: choose Front, Right, Back and Left explicitly for four sides, or use the simulator navigation blocks.

The indentation shows which commands are inside the loop. Land returns to the left margin because it runs after the loop.

The loop that knows which pass it is on

repeat cannot tell you anything about itself. count with can: it hands you a variable — i by default — that holds 1 on the first pass, 2 on the second, and so on. Drop that variable into a wait to make each movement last longer than the previous one.

A count with i from 1 to 4 block whose wait block uses i, so each forward movement lasts longer than the previous one

The purple i in the wait block is the loop’s counter. Each forward movement lasts one second longer than the previous one. The direction stays unchanged; this example is not a spiral.

Generated by Blocks
for i in range(1, 5):
    drone.fly('forward', 1)
    time.sleep(i)
    drone.fly_stop()
    time.sleep(0.5)

from, to and by are all sockets, so all three can be worked out rather than typed. by 2 counts 1, 3, 5; a negative by counts down.

Repeating until something is true

repeat while / until ⟨test⟩ runs as long as its test holds. It is the loop to reach for when you do not know in advance how many passes there will be — “keep going while the battery is above 20%”.

The dropdown flips between while (keep going while true) and until (keep going until true), which saves reaching for a not block.

Leaving early

break out of loop stops the loop immediately and carries on with whatever comes after it. continue with next iteration abandons the current pass and starts the next one. Both come from the same block, on a dropdown.

Inside an if, break is how a program says this has gone far enough:

An if block testing whether the battery level is below 20, with a land block inside it

Put this inside a loop, with a break after the land, and the flight ends itself when the battery gets low.

One pass per item

for each item i in list ⟨list⟩ walks a list, handing you one item at a time. It is the natural way to fly a route written down as a list of directions — see Lists and Text.
